900 Series

900 Series

SINGLE POINT SUSPENSION

Designed for heavy-duty on and off-road applications, the Hutch 900 is a single point suspension that attaches to the trailer frame at a single location – which makes it ideal for logging, heavy load hauling and dump operations.

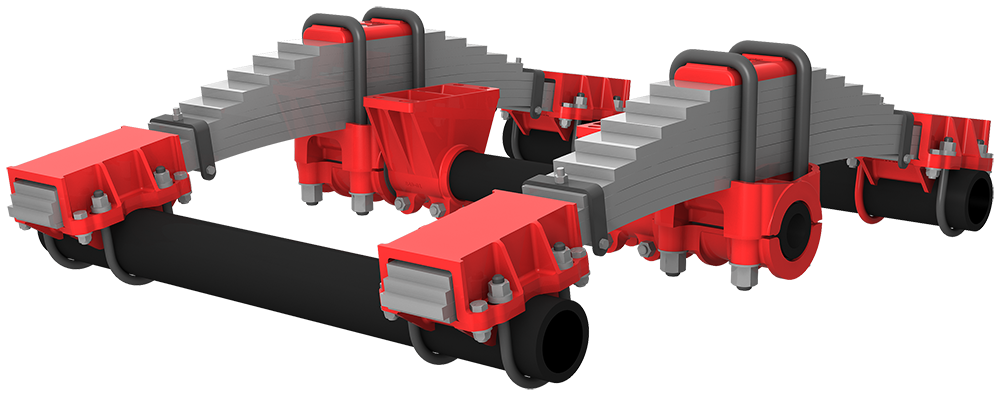

900 Series Image
ABOUT
FEATURES
OPTIONS
The Hutch 900 Single Point Suspension offers the superior durability, reliability and performance that your fleet deserves – and it is backed by Hutchens’ on-time delivery, warranty, and commitment to after-sale support and service.
- Features extra heavy-duty 5" wide leaf springs and cast steel parts.
- Accurate spring alignment preserved by the use of rugged spring guides on the trunnion casting.
- A split trunnion casting permits easy maintenance and replacement of trunnion bushings.
- Axle alignment and realignment made possible by adjustable plates within the spring-end boxes. One adjustment plate on each axle is welded at the factory. After axle alignment is completed, the installer welds the other adjustment plate to ensure sustained axle alignment.
- For increased life and flexibility, thick rubber pads are used above the spring leaves in the axle boxes which permit greater twist freedom… A standard flexibility feature that reduces wear and promotes better ride characteristics.
- Weight capacity ratings of 36,000, 42,000, 44,000, 50,000, 60,000 and 70,000 lbs., with weight-saving two and three leaf units also available.
16793-01 Mounting Bracket To help ease the installation of your 900 Series suspension, you may wish to order a pair of Hutch mounting brackets (Part #16793-01). Straddle Mount For a more integrated installation solution, consider the Straddle Mount trunnion hanger option.
