9600 Series

9600 Series

FOR MULTIPURPOSE APPLICATIONS

All 9600 Series suspensions feature tapered rubber torque arm bushings for extended service life.

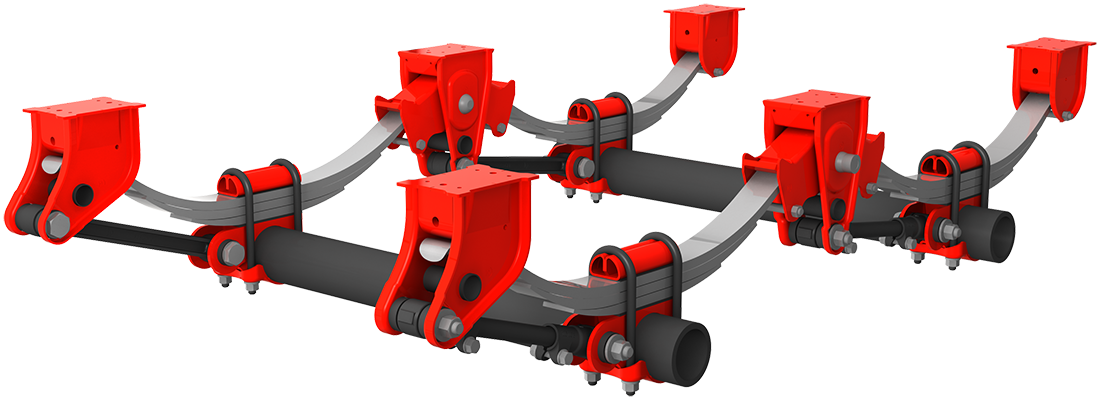

9600 Series Image
ABOUT
FEATURES
OPTIONS
Like our 9700 Series suspensions, the 9600 can be assembled in single, tandem and multi-axle configurations. Weight capacities up to 25,000 lbs/axle and numerous mounting heights. The 9600 Series suspension is available with either fabricated or cast steel spring hangers and rockers designed to fit many mounting requirements.
- A two-piece tapered torque arm bushing that offers superior durability and maximum serviceability
- A Huck “lockbolt” fastening system for the rocker/rocker hanger assembly that is virtually maintenance free.
- Lightweight, fabricated hangers with 1/2” wear pads and drainage holes to reduce wear at all spring contact points and increase service life.
- Cast steel hangers and equalizers with increased wall thickness at spring contact points, eliminating the need for additional wear pads.
- The industry’s finest rocker brushing.
The 9600 Series suspensions are available in single, tandem and tri-axle configurations. In addition to the standard overslung configuration, an underslung configuration is available for reduced mounting heights.
Product Resources
Catalog Section
Installation Instructions
Product Documentation
Warning Decal 16086-01
Warranty
Suspension Spec Sheet
